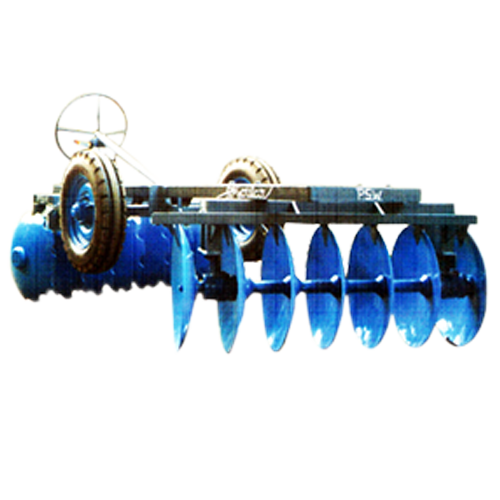

Trail Disk Harrow

Strong and Sturdy main frame with high quality steel discs.
Because of heavy weight and design and since it trails behind the tractor it easily breaks up heavy soil clods.
Apart from general field dicing it cuts the lumps, clods, roots grass, weeds and other organic matters to effectively bury and mix with the soil which rapidly decays to form compost / humus.

Specification :
Disc Diameter 24” (610mm)
Type of Disc Front – Cut ways, Rear – Plain
Disc Spacing 9” (230 mm)
Gangs Adjustable as per requirement
Discs High Carbon tempered.
Choice of Ball Bearing or Bush Bearing
Available in “Center – Tyre” type as well as “Rear Tyre” type for towing on road.

Trail Disk Harrow

Model	Length in mm	Width in mm	Height in mm	Height while Towing in mm	Weight in Kg.
12 Disc – Rear Tyre	3226	1549	1371	864	615
12 Disc – Center Tyre	3658	1727	1499	1676	737
14 Disc – Rear Tyre	3226	175	1371	864	650
14 Disc – Center Tyre	3658	1905	1499	1676	772
16 Disc – Rear Tyre	3226	2134	1371	864	685
16 Disc – Center Tyre	3658	2261	1499	1676	807
18 Disc – Center Tyre	3658	2489	1499	1676	850

Following models are available in hydraulically operated models.

Model	Length in mm	Width in mm	Height in mm	Height while Towing in mm	Weight in Kg.
12 Disc – Center Tyre	3658	1727	1499		750
14 Disc – Center Tyre	3658	1905	1499		787
16 Disc – Center Tyre	3658	2261	1499		837
18 Disc – Center Tyre	3658	2489	1499		860
20 Disc – Center Tyre	3658	2714			1050
22 Disc – Center Tyre	3658	2939			1200
24 Disc – Center Tyre	3658	3165			1500
