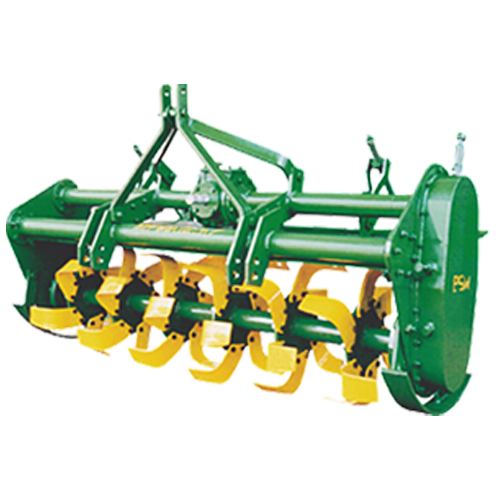

Rotor

Robust Construction and strong built.

Specially useful and ideal for removing Stubbles of sugarcane, cotton, Banana, Jowar, Maize and roots of various other crops.

Mixes fertilizer, lime, crop residues and surface trash thoroughly and evenly resulting in rapid decomposition of organic matter and thus a seed – bed is rapidly prepared without damaging the soil structure.

Less wear and tear and no extra load on the tractor.

Reduces the number of operations, saves time labour, capital expenditure resulting in more profit.
The size of the “Soil – Slice” or thickness of the tilth can be varied as per one’s requirement.

Also useful for inter row cleaning & mulching in and around fruit or vegetable plantations.

Sturdy & versatile with “ Gear Drive” as well as “ Chain Drive” transmission.

Available in Blade type as well as in Tine type.

540 RPM and 1000 RPM models are available.

Hardened and tempered universal Joint Shaft.

Rotor

Models	PTO RPM	H.P.	Working Width in mm	No. of Blades/ Tines	Total weight		Overall Height
Models	PTO RPM	H.P.	Working Width in mm	No. of Blades/ Tines	Gear Drive Kg.	Chain Drive Kg.	Gear Drive mm	Chain Drive mm
PRB 2’-6”	540	18-25	814	18	280	282	940	<1025
PRB 2’-6”	540	18-25	750	20	280	282	940	<1025
PRB 3¼’	540	35-45	1020	24	290	292	940	<1025
PRB 3¼’	1000	35-45	1020	24	330	332	940	<1025
PRT 3¼’	540	35-45	950	24	290	292	940	<1025
PRT 3¼’	1000	45-60	950	24	330	332	940	<1025
PRB 4’	540	45-60	1280	30	320	322	940	<1025
PRB 4’	1000	45-60	1280	30	360	362	940	<1025
PRT 4’	540	45-60	1210	30	320	322	940	<1025
PRT 4’	1000	45-60	1210	30	360	362	940	<1025
PRB 5’	540	45-60	1540	36	340	342	940	<1025
PRB 5’	1000	45-60	1540	36	380	382	940	<1025
PRT 5’	540	45-60	1470	36	340	342	940	<1025
PRT 5’	1000	45-60	1470	36	380	382	940	<1025
PRB 6’	540	60 above	1800	42	360	362	940	<1025
PRB 6’	1000	60 above	1800	42	400	402	940	<1025
PRT 6’	540	60 above	1730	42	360	362	940	<1025
PRT 6’	1000	60 above	1730	42	400	402	940	<1025
