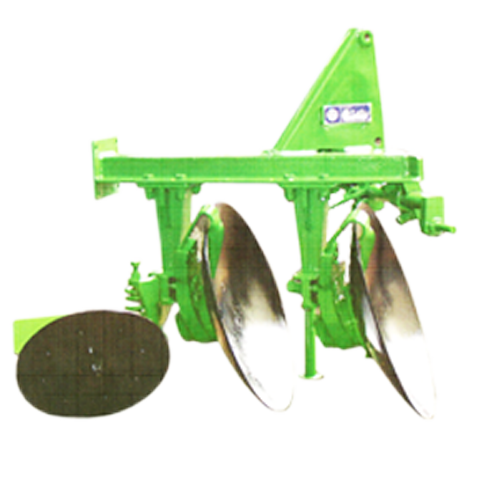

Disc Plough (Two Discs)
Popular disc plough is most suitable for conditions such as in hard, dry soils and in sticky soils where a conventional plough will not scour and in loose, push type soil such as peat lands.
Popular disc plough cuts the soil with the help of discs which rotates on its axis.
After cutting the furrows into slices it is lifted up along the disc, and with the help of scrapper and gravity force, it is then thrown on one side being well scoured and pulverized.
Disc Plough (Two Discs)
| Types | : | Two Discs Disc Plough |
| Length in mm | : | 1210 |
| Width in mm | : | 872 |
| Height in mm | : | 1270 |
| Weight in mm | : | 260 |
| Disc Diameter | : | 660 |
| Disc Concavity | : | 105 |
| Distance Between Two Disc | : | 530 |
| Tilt Angle | : | 22.50 |
| Disc Angle | : | 450 |
| Disc Assembly Bearing | : | 32213 |
