Two Reversible Plough

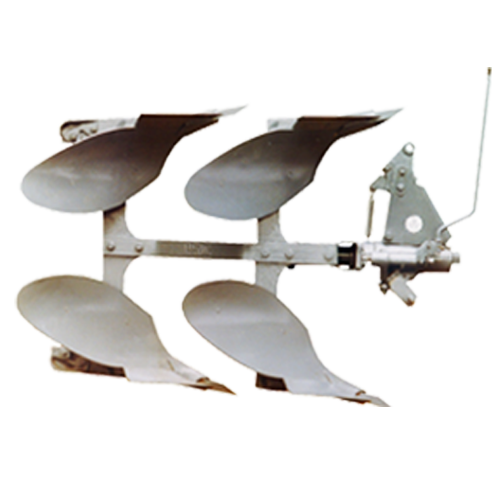

Popular P.S.W. Two Furrow Reversible Plough



The Reversible Plough was successfully manufactured FOR THE FIRST TIME
IN INDIA – by Popular in the fifties!
The Popular Reversible Plough is a primary tillage implement which performs the function of “deep-opening” and “loosening” of the soil. It lifts soil – clod and throws it on to the surface breaking the soil – clod into smaller particle size.

EXCLUSIVE FEATURES & BENEFITS :-
The Popular Reversible Plough has a set of mould-board ploughs which can be changed or reversed automatically to work in both the direction i.e. the furrow can be made right – hand or left – hand as well. Thus it can invert all the soil of the furrow always on one side.

The Popular Reversible Plough is very useful in the areas where:-
It is very important that the field is to be leveled.
The slopes of the field results in soils and water erosion.
And, where strip-farming is in practice as in hilly areas.
The Popular Reversible Plough is simple in design and construction but sturdy and robustly built.
The Popular Reversible Plough can be easily mounted on a tractor by the three - point-linkages.
The Popular Reversible Plough is easy to operate and changing or reversing of the furrows is automatically achieved by the “hydraulics” of the tractors.
The Popular Reversible Plough is fitted with special screws for adjustment of furrows.
It is also fitted with ball bearing “Furrow – wheels” which reduces the load on the tractor and helps in smooth and straight ploughing of the field.

Two Reversible Plough Video

The Popular Two Furrow Reversible Plough is very useful in the areas where:-

  1. It is very important that the field is to be leveled.
  2. The slopes of the field results in soils and water erosion.
  3. And, where strip-farming is in practice as in hilly areas.

The Popular Two Furrow Reversible Plough is simple in design and construction but sturdy and robustly built.
The Popular Two Furrow Reversible Plough can be easily mounted on a tractor by the three – point - linkages.
The Popular Two Furrow Reversible Plough is easy to operate and changing or reversing of the furrows is done by tilting of a handle bar within easy reach of the tractor driver.
Since two furrows are used it reduces ploughing time by almost half.
Two Furrow Reversible Plough are also available in Hydraulically operated models
changing of bottoms is done by Hydraulically.

Specifications :

MODELS LENGTH in mm WIDTH in mm HEIGHT in mm WORKING WIDTH  in mm WEIGHT in Kg.
35 H.P. 1660 940 1170 560 290
45 H.P. 1780 1050 1170 670 350
50 H.P. 1810 1140 1285 730 410
65 H.P. 1830 1160 1285 800 430

Popular P. S. W. branded Two Bottom Reversible Plough is also available in Hydraulic version for all the higher HP Models. The Hydraulic system of the Power Tractor is used and the Implement is designed to fit with inbuilt system values or External values to the tractor for easy operation of reversible / tilling the cutting Bottoms the plough.

Thus save the extra power and less precaution and load on the tractor. The operation of reversible action is made smooth and eassy to the Tractor Operator.

MODELS LENGTH in mm WIDTH in mm HEIGHT in mm WORKING WIDTH  in mm WEIGHT in Kg.
45 H. P. 1780 1050 - 670 360
50 H. P. 1810 1140 1285 730 420
65 H. P. 1830 1160 - 800 440

Popular P.S.W. Two Furrow Reversible Plough



The Reversible Plough was successfully manufactured FOR THE FIRST TIME
IN INDIA – by Popular in the fifties!
The Popular Reversible Plough is a primary tillage implement which performs the function of “deep-opening” and “loosening” of the soil. It lifts soil – clod and throws it on to the surface breaking the soil – clod into smaller particle size.

EXCLUSIVE FEATURES & BENEFITS :-
The Popular Reversible Plough has a set of mould-board ploughs which can be changed or reversed automatically to work in both the direction i.e. the furrow can be made right – hand or left – hand as well. Thus it can invert all the soil of the furrow always on one side.

The Popular Reversible Plough is very useful in the areas where:-
It is very important that the field is to be leveled.
The slopes of the field results in soils and water erosion.
And, where strip-farming is in practice as in hilly areas.
The Popular Reversible Plough is simple in design and construction but sturdy and robustly built.
The Popular Reversible Plough can be easily mounted on a tractor by the three - point-linkages.
The Popular Reversible Plough is easy to operate and changing or reversing of the furrows is automatically achieved by the “hydraulics” of the tractors.
The Popular Reversible Plough is fitted with special screws for adjustment of furrows.
It is also fitted with ball bearing “Furrow – wheels” which reduces the load on the tractor and helps in smooth and straight ploughing of the field.

Two Reversible Plough Video

The Popular Two Furrow Reversible Plough is very useful in the areas where:-

  1. It is very important that the field is to be leveled.
  2. The slopes of the field results in soils and water erosion.
  3. And, where strip-farming is in practice as in hilly areas.

The Popular Two Furrow Reversible Plough is simple in design and construction but sturdy and robustly built.
The Popular Two Furrow Reversible Plough can be easily mounted on a tractor by the three – point - linkages.
The Popular Two Furrow Reversible Plough is easy to operate and changing or reversing of the furrows is done by tilting of a handle bar within easy reach of the tractor driver.
Since two furrows are used it reduces ploughing time by almost half.
Two Furrow Reversible Plough are also available in Hydraulically operated models
changing of bottoms is done by Hydraulically.

Specifications :

MODELS LENGTH in mm WIDTH in mm HEIGHT in mm WORKING WIDTH  in mm WEIGHT in Kg.
35 H.P. 1660 940 1170 560 290
45 H.P. 1780 1050 1170 670 350
50 H.P. 1810 1140 1285 730 410
65 H.P. 1830 1160 1285 800 430

Popular P. S. W. branded Two Bottom Reversible Plough is also available in Hydraulic version for all the higher HP Models. The Hydraulic system of the Power Tractor is used and the Implement is designed to fit with inbuilt system values or External values to the tractor for easy operation of reversible / tilling the cutting Bottoms the plough.

Thus save the extra power and less precaution and load on the tractor. The operation of reversible action is made smooth and eassy to the Tractor Operator.

MODELS LENGTH in mm WIDTH in mm HEIGHT in mm WORKING WIDTH  in mm WEIGHT in Kg.
45 H. P. 1780 1050 - 670 360
50 H. P. 1810 1140 1285 730 420
65 H. P. 1830 1160 - 800 440
