Popular P.S.W.TILLER WITH KULAV BLADE

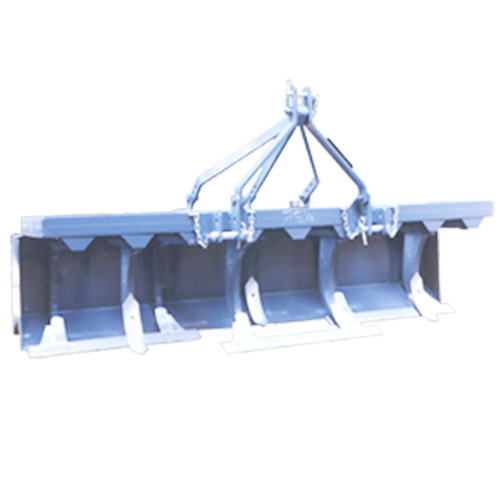

POPULAR TILLER WITH KULAV BLADE
This is the modified and extented version of Popular Tiller. In this a blade harrow and leveling sheet is additionally attached to the tiller. The blade harrow cuts the weed & grass etc. and also breaks the clods that may be formed. The leveling sheet does the job of leveling the field. Therefore various combinations of functions can be performed.
1. It can be used as Tiller only – by removing the blade harrow and leveling Sheet.
2. It can be used as a blade harrow.
3. It can also be used as a leveler in both forward & reverse direction.
Strong angle frame and strudy tines.
Adjustable frame and tine setting.
Blade harrow & leveling metal sheet. Can be easily attached or dettached.
Three Point mounting.
A versatile and multipurpose tiller.
|Implement||Length in mm||Width in mm||Height in mm||Under frame Clearance in mm||Assembled Row width in mm||Weight in Kg.|
|7 tine tiller with blade Harrow||660||2083||1040||457||318||236|
|9 tine tiller with blade & leveling sheet||660||2083||1040||457||230||267|
|7 tine tiller with blade leveling sheet||790||2083||1040||457||230||305|
|9 tine tiller with blade & leveling sheet||790||2083||1040||457||230||305|
|11 tine tiller with blade Harrow||660||2426||1040||457||230||306|
