MOLE PLOUGH

Popular P.S.W. MOLE PLOUGH

POPULAR P.S.W. MOLE PLOUGH

Popular P.S.W. Mole plough is useful in salt affected soil where the natural agricultural drainage of water is blocked.
Popular P.S.W. Mole plough penetrates 2 to 3 feet into the soil. The blade of the beam chisels or cuts through the ground when pulled by tractor.
At the bottom of beam an arrangement called bullet is attached, which open the soil make a hollow pipe. At the back of the bullet an expander is attached which radially increases the hollow pipe like structure deep inside the soil.
In a different model the expander is removed and instead a box with sand is attached which. The sand fill up the hollow pipe made by the bullet through a pipe.
The sand pipe work as a drainage system.

Specifications :



ength
In mm
Width
In mm
Height
In mm
Weight
In Kg
Minimum HP
required
762 915 1371 60 H.P

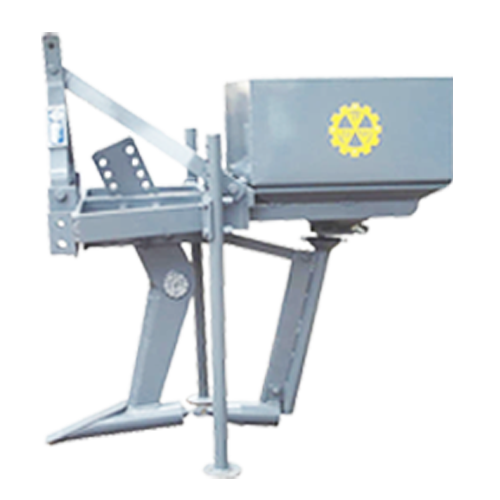

Mole plough with sand box attachment

ength
In mm
Width
In mm
Height
In mm
Weight
In Kg
Minimum HP
required
1130 915 1371 60 H.P
